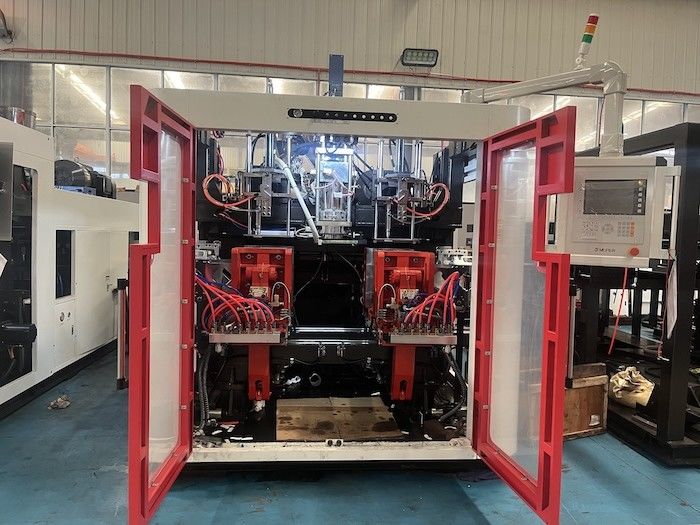

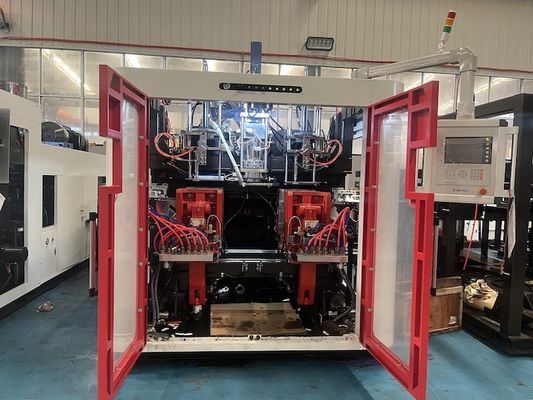

Pvc Customizable MP70DF-4 Extrusion Molding Machine With 90KN Mould Clamping Force

Product Description:

The MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. It is specifically engineered to handle a wide range of hollow products, from 5 milliliters up to 100 liters in size.

This versatile machine is ideal for manufacturing a variety of products, including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and automotive parts.

Moreover, the machine can handle different types of materials such as PE, PP, PVC, PA, PC, PS, and EVA. It is capable of providing a perfect manufacturing process for the desired products.

Features:

a) The extruding device is equipped with a variable frequency motor that can meet the rotational change requirements of the screw during the blowing process. Utilizing a screw with a high slenderness ratio enables the processing of various materials with robust plasticizing capability, high production efficiency, and low energy consumption. The barrel features a resistance heater controlled by a computer for quick, stable, and uniform heating.

b) By incorporating different heads into the combined extrusion system between two extrusion machines, products with a visible strip line or double layers can be produced.

c) The mould clamping device adopts a toggle type mechanism and linear guiders. With a double station design, the mould platen moves faster and more steadily.

d) The hydraulic oil loop has been redesigned for improved performance, providing power savings, rapid operation, and stability.

e) Hydraulic elements are easy to install and maintain, thanks to the removable and mobile oil tank.

f) The entire machine is computer-controlled, with a hydraulic system featuring double proportional control. It offers fault automatic alarms, ensuring reliable operation, high automation, and the ability to store data from 40 sets of moulds.

g) Three operation modes - "Manual", "Semi Auto", and "Full Auto" - can be selected based on requirements.

h) The safety door is equipped with electric and mechanical safety devices to prevent mould closure when the door is open, enhancing operational safety and reliability.

i) This machine provides two blowing functions: straight cutting and oblique cutting.

Technical Parameters:

• Applicable materials: PE PP PVC PA...
• Max product volume: 5L
• Number of heads: 1,2,3,4
• Machine dimension (LxWxH): 3.6×2.3×2.36M
• Machine weight: 4.9 TON

• Mould clamping force: 90 KN
• Platen opening strokes: 180-480 MM
• Plate stroke: 300
• Max mould sizes(WxH): 400×420 MM

• Screw diameter: 80 MM
• Screw slenderness ratio (L/D): 24
• Plasticizing ability (HDPE): 90 KG/H
• Screw heating stage/zone: 4 Zone
• Screw heating power: 15.85 KW
• Screw fan power: 0.28 KW
• Extrusion motor power: 30 KW

Head

• Head heating stage/zone: 10 Zone
• Head heating power: 16.5 KW

• Total machine power: 80 KW
• Oil motor power: 11 KW
• Air pressure: 0.6-0.8 MPA
• Compression air volume: 1.2 M3/H
• Cooling water volume: 0.4 M3/H

Applications:

MEPER 7D 70FD Extrusion Molding Machine is a versatile and efficient machine designed to meet various production needs. With its origins in China, this machine boasts CE/ISO9001:2008 certification, ensuring high quality and reliability.

Whether you are looking for a fully automatic blow molding machine, an auto deflashing blow molding machine, or a 4 cavity blow molding machine, the MEPER 7D 70FD is an ideal choice. Its minimum order quantity is just 1 set, and the price is negotiable, making it accessible for businesses of all sizes.

Thanks to its standard packaging and delivery time of 25-35 work days, you can quickly integrate this machine into your production line. The payment terms of L/C and T/T offer flexibility and convenience for your transactions.

With a supply ability of 100 sets per month, the MEPER 7D 70FD ensures that you can meet your production demands without delays. Despite its robust capabilities, this machine is relatively lightweight at 4.9 tons, making it easy to move and install.

The plate stroke of 300mm, mold clamping force of 90KN, and max product volume of 5L make this machine suitable for working with a variety of materials including PE, PP, PVC, and PA. Whether you are producing containers, bottles, or other hollow products, the MEPER 7D 70FD can handle the job with precision and efficiency.

Packing and Shipping:

Product Packaging:

The Extrusion Molding Machine is carefully packaged in a sturdy cardboard box to ensure safe transportation. The machine is secured with foam inserts to prevent any damage during shipping. Each component is individually wrapped to avoid scratches or dents.

Shipping:

Our shipping process involves thorough quality checks to confirm the machine's functionality before dispatch. The Extrusion Molding Machine will be shipped using a reputable courier service to guarantee timely and secure delivery. Customers will receive a tracking number to monitor the shipment's progress.

FAQ:

Q: What is the brand name of the Extrusion Molding Machine?

A: The brand name of the Extrusion Molding Machine is MEPER.

Q: What is the model number of the Extrusion Molding Machine?

A: The model number of the Extrusion Molding Machine is 7D 70FD.

Q: Where is the Extrusion Molding Machine manufactured?

A: The Extrusion Molding Machine is manufactured in China.

Q: What certifications does the Extrusion Molding Machine have?

A: The Extrusion Molding Machine is certified with CE/ISO9001:2008.

Q: What are the payment terms for purchasing the Extrusion Molding Machine?

A: The payment terms for purchasing the Extrusion Molding Machine are L/C and T/T.
