MEPER 80FD Automatic Blow Moulding Machine

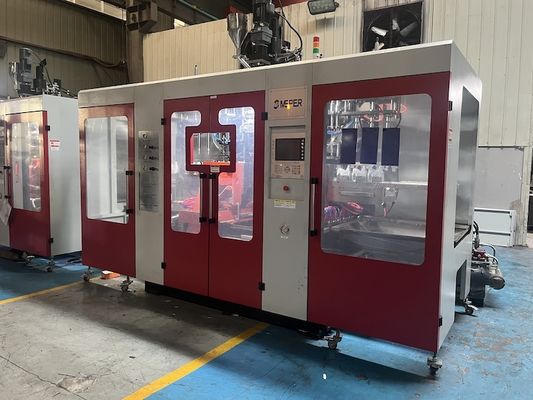

Image Grand : MEPER 80FD Automatic Blow Moulding Machine

Détails sur le produit:

Nom de marque:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	80FD

Conditions de paiement et expédition:

Minimum Order Quantity:	1 Set
Prix:	negotiable
Packaging Details:	Standard Packaging
Delivery Time:	25-35 Work Days
Conditions de paiement:	LC, T/T
Supply Ability:	100 Sets Per Month

Contact

Description de produit détaillée

Matériel applicable:	PEHD + EVOH+AD	Traction de plaque:	540m M
Mot clé:	machine à souffler des bouteilles hdpe	Force de serrage:	120KN
Taper:	Machines de traitement du plastique	Couche:	quatre
MOTEUR:	Siemens	Capacité des conteneurs:	500 ml
Mettre en évidence:	automatic blow moulding machine , extrusion molding machine with warranty , MEPER 80FD molding equipment

MEPER 80FD Automatic Blow Moulding Machine

Product Description

An Extrusion Blow Molding Machine is a specialized piece of equipment designed for shaping plastic materials. It starts by melting plastic resin, commonly using types such as HDPE, LDPE, polypropylene (PP), or PVC.

Once the plastic is melted, the machine extrudes it into a hollow tube known as a parison. This parison serves as the foundation for the molding process.

The next step involves closing a mold around the parison. With the mold securely in place, air is blown into the parison, causing it to expand and take the exact shape of the mold cavity.

After the plastic has cooled and solidified within the mold, the machine then ejects the finished hollow product, ready for further processing or use.

Key Features

Accommodates hollow products of various sizes, including large, medium, and small items
Supports processing of numerous plastic types for diverse material requirements
Capable of handling thick-wall containers for sturdy, durable packaging solutions
Production in single-layer or multi-layer formats (up to six or more layers)
High durability design ensures stable, continuous operation with minimal downtime
Available in both single-station and double-station configurations

Technical Parameters

80FDE-4S(100)
SPECIFICATION	MATERIAL	PE
MAX CONTAINER CAPACITY	L	500ML
NUMBER OF DIE	set	4
MACHINE DIMENSION(LxWxH)	M	3.82x4x2.5
TOTAL WEIGHT	ton	8.6
CLAMPING UNIT
CLAMPING FORCE	kN	120
PLATEN OPENING	mm	240-600
TOGGLE STROKE	mm	540
MAX MOULD SIZE (WxH)	mm	480x500
EXTRUDER UNIT
SCREW DIAMETER	mm	75
SCREW L/D RATIO	L/D	24
PLASTICIZING CAPACI(HDPE)	Kg/h	85
SCREW HEATING ZONE	zone	3
SCREW HEATING POWER	kW	15.3
FAN POWER	kW	0.14
EXTRUDER MOTOR POWER	kW	22
DIE HEAD
DIE HEAD HEATING ZONE	zone	15
POWER OF DIE HEAD HEATING	kW	16.5
MAX DIAMETER OF MOUTH MOLD	mm	35
ENERGY-CONSUMPTION
TOTAL POWER OF MACHINE	kW	72
POWER OF OIL PUMP MOTO	kW	15
AIR PRESSURE	Mpa	0.6-0.8
CONSUMPTION COMPRESSION AIR	m3/min	1.5
CONSUMPTION COOLING WATER	m3/min	0.4

Applications

Extrusion blow molding is widely used to create various plastic containers and objects, including:

HDPE bottles for detergents, shampoos, and yogurts
Containers for motor oils and lubricants
Bottles for chemicals and pesticides
Large-capacity containers (5-30 liter jerry cans)
Water tanks and fuel tanks
Toys and hollow objects like plastic balls, floats, and cones

Frequently Asked Questions

What is the brand and model number of this extrusion molding machine?

The extrusion molding machine is from the brand MEPER, and the model number is 80FD.

Does the MEPER 80FD extrusion molding machine have any certifications?

Yes, the machine is certified with CE and ISO9001:2008 standards.

What is the minimum order quantity and price for the MEPER 80FD?

The minimum order quantity is 1 set, and the price is negotiable.

What are the packaging and delivery details for this product?

The machine comes with standard packaging, and the delivery time is typically 25-35 working days.

What payment terms does MEPER accept for the 80FD extrusion molding machine?

Payment terms include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
