Product Description:
Functions

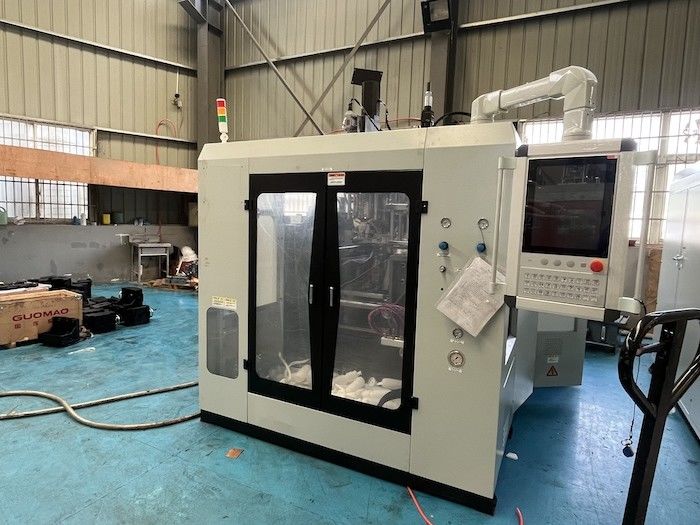

The MP plastic blow molding machine is designed to process various types of plastic hollow products containing large molecules. It is capable of manufacturing hollow items ranging from 5 milliliters to 100 liters in size. These products encompass bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and automotive components, among others.
This machine is not limited to blowing different materials like PE, PP, PVC, PA, PC, PS, and EVA. It can also deliver impeccable processes to ensure high-quality production.
Features:
1.1.2 Features
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
Technical Parameters:
Basic Parameter
Basic specifications
Applicable materials: PE, PP, PVC, PA…
Max product volume: 2 L
Number of heads: 1, 2, 3, 4, 5, 6 (SET)
Machine dimension (LxWxH): 2.87m x 2.14m x 2.28m
Machine weight: 3.5 TON
Mould clamping system
Mould clamping force: 30 KN
Platen opening strokes: 120-350 MM
Plate stroke: 380 MM
Max mould sizes (WxH): 360x300 MM
Extrusion system
Screw diameter: 55 MM
Screw slenderness ratio (L/D): 24
Plasticizing ability (HDPE): 45 KG/H
Screw heating stage/zone: 3 Zone
Screw heating power: 10.1 KW
Screw fan power: 0.14 KW
Extrusion motor power: 11 KW
Head
Head heating stage/zone: 5 Zone
Head heating power: 6.5 KW
Energy consumption
Total machine power: 40 KW
Oil motor power: 7.5 KW
Air pressure: 0.6-0.8 MPA
Compression air volume: 0.8-1 M3/H
Cooling water volume: 30 L/H
Applications:
When it comes to the MEPER 5D 55d Molding Extruder Equipment, the application occasions and scenarios are diverse and extensive, making it a versatile solution for various industries. Originating from China, this top-notch machine is certified with CE/ISO9001:2008 standards, ensuring quality and reliability.
With a minimum order quantity of just 1 set and a negotiable price, the MEPER 5D 55d is accessible for businesses of all sizes. The packaging details include standard packaging, and the delivery time ranges from 25 to 35 work days, providing efficiency and convenience. Payment terms accepted are L/C and T/T, catering to different preferences.
The supply ability of 100 sets per month guarantees availability for high-demand projects. The machine's key specifications, such as a mould clamping force of 30KN, a screw diameter of 55mm, and a plate stroke of 380mm, make it suitable for working with materials like PE, PP, PVC, and PA.
Weighing 3.5 tons, this Plastic Extrusion Machine is designed for durability and stability, ensuring long-term performance. Its precision and efficiency make it ideal for applications in industries such as packaging, construction, automotive, and more.
Whether you are looking to produce pipes, tubes, profiles, or other plastic products, the MEPER 5D 55d Molding Extruder Equipment is a reliable choice. Its advanced technology and user-friendly design streamline the production process, leading to high-quality output.
Customization:
Product Customization Services for the Extrusion Molding Machine :
Brand Name: MEPER
Model Number: 5D 55d
Place of Origin: China
Certification: CE/ISO9001:2008
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packaging
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Screw slenderness ratio: 24
Max product volume: 2L
Number of heads: 1,2,3,4,5,6
Screw diameter: 55mm
Plate stroke: 380mm
